DC Brushless Fan Motor — Model WZDK58-38G

High-efficiency DC brushless fan motor engineered for inverter air conditioning systems. Designed for quiet operation, precise electronic speed control, and long service life in continuous-duty HVAC applications.

Ideal for professional replacement and OEM servicing.

⚙️ Technical Specifications

🔹 Model: WZDK58-38G

🔹 Motor Type: DC Brushless

🔹 Rated Voltage: DC 310V

🔹 Rated Speed: 1350 RPM

🔹 Protection Rating: IP41

🔹 Insulation Class: E

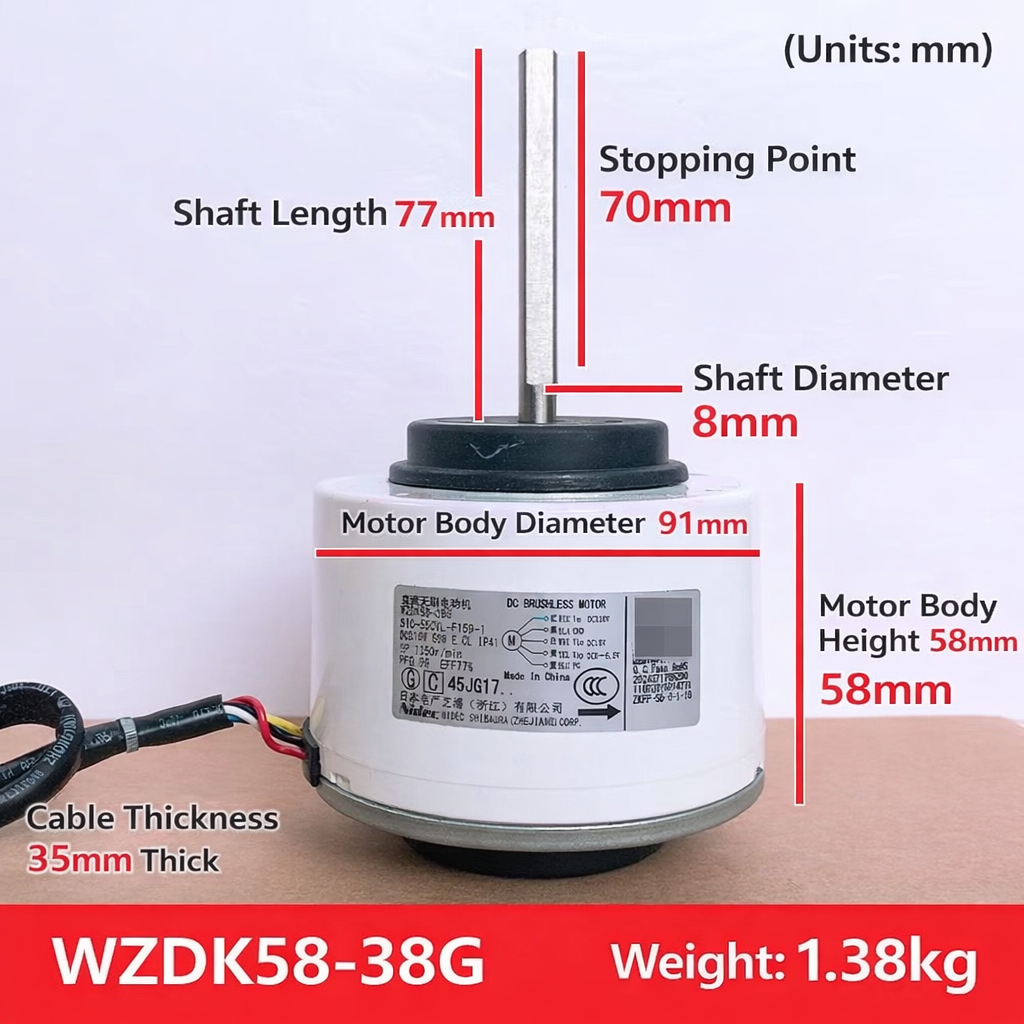

📐 Dimensions

🔹 Shaft Length: 77 mm

🔹 Stopping Point Length: 70 mm

🔹 Shaft Diameter: 8 mm

🔹 Motor Body Diameter: 91 mm

🔹 Motor Body Height: 58 mm

🔹 Cable Length: 35 cm

⚖️ Weight

🔹 Net Weight: 1.38 kg

🏭 Manufacturer

🔹 Nidec Shibaura (Zhejiang) Corporation

🔹 Made in China

🧩 Key Features

✅ Brushless DC inverter motor technology

✅ Energy-efficient performance

✅ Ultra-quiet, low-vibration operation

✅ Precise electronic speed regulation

✅ Stable continuous-duty performance

✅ Durable metal shaft construction

✅ Quick-install multi-pin connector

🛠️ Ideal For

• HVAC technicians

• Inverter AC motor replacement

• Professional maintenance services

• OEM spare parts supply
